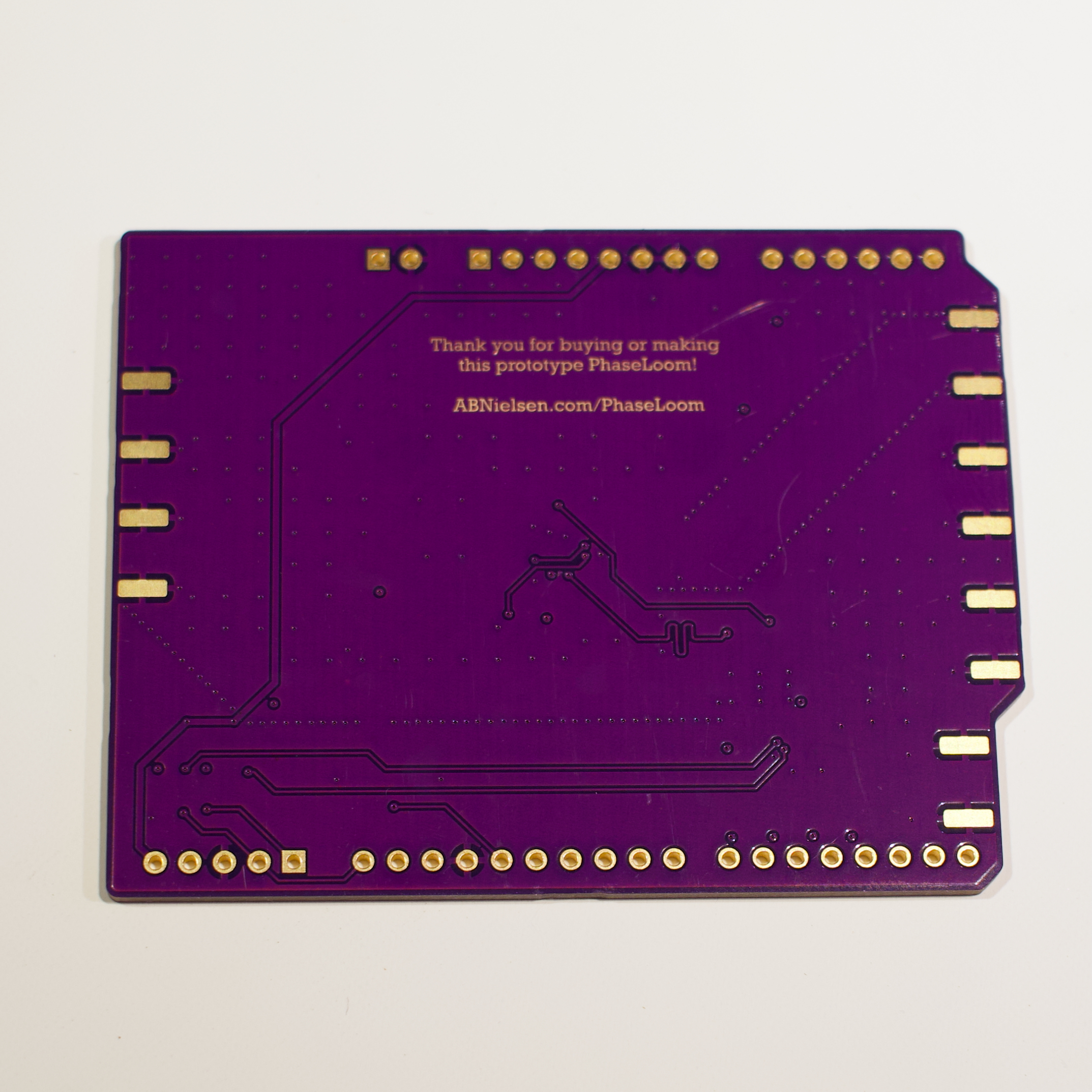

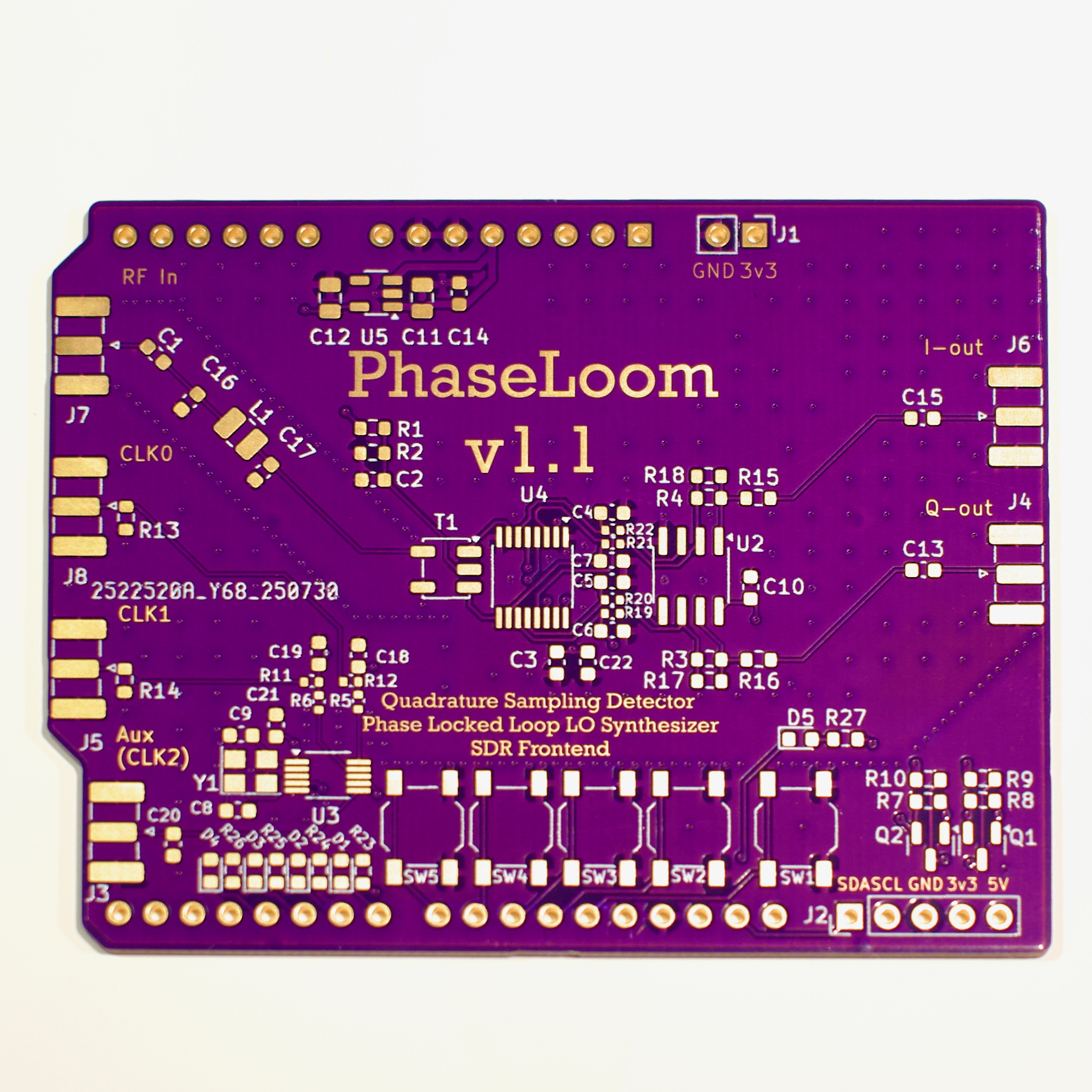

PhaseLoom SDR Shield PCB v1.1 (Bare Board)

På lager. Afsendes efter 0-2 hverdage.

Vis stort billede

123,75 DKK

Vis stort billede

Produkt: PhaseLoom SDR Shield PCB v1.1 (Bare Board)

Pris inkl moms: 123,75 DKK
Lagerstatus: På lager

This is the bare PCB for the PhaseLoom SDR Shield – a quadrature sampling detector SDR frontend designed for the 65uino (or any I²C-capable microcontroller).

What’s New in v1.1

Fixed the I/Q sampling order error from v1.0
Clean layout ready for hobbyist assembly
Supports SMA connectors, SI5351 clock generator, Tayloe mixer, and differential signal paths

Details

PCB only – no components, no pin headers
Gold finish, Arduino shield form factor
Open-source design with full schematics, BOM, and firmware available on GitHub

Perfect for DIYers who want to source their own parts and build the PhaseLoom from scratch.

Dette produkt er listet i følgende kategori(er): Samlesæt, hobbyelektronik og IC'er,
